Description

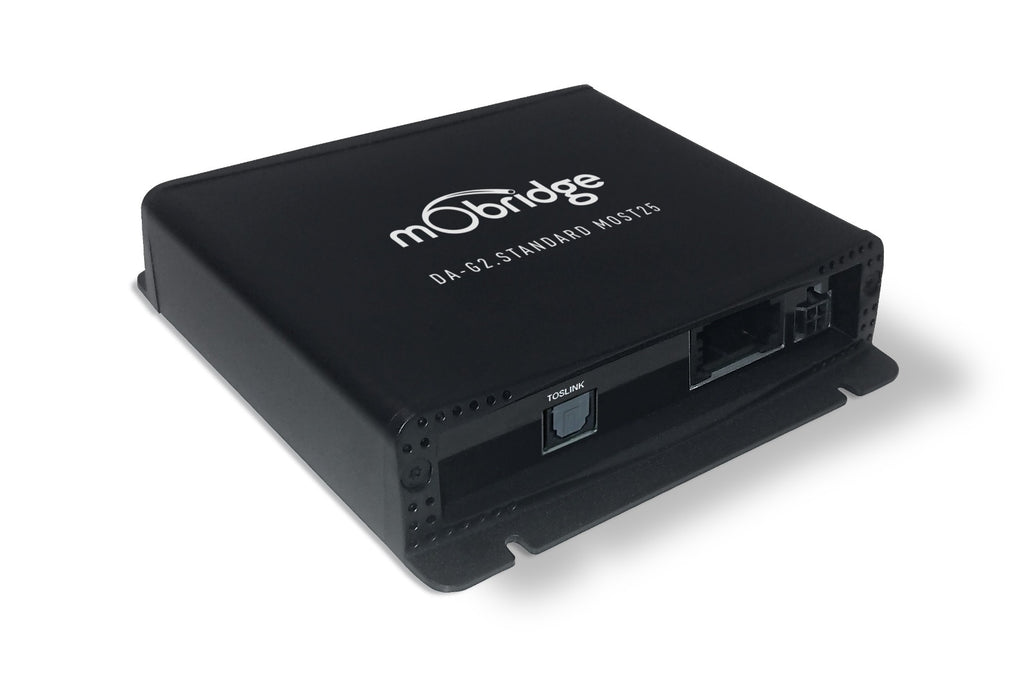

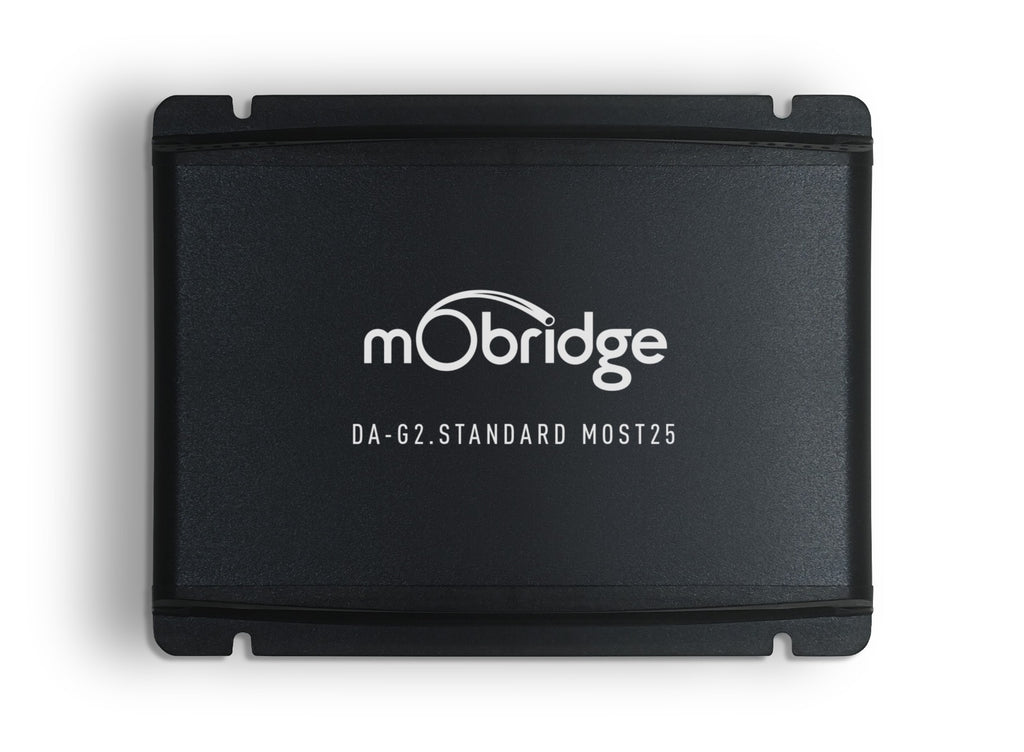

The mObridge DA-G2.Standard MOST25 pre-amplifier provides a connection between the in-vehicle MOST25 system with any aftermarket analog/digital DSP/amplifier.
It provides 10 channels of RCA analog outputs, a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.
The DA-G2.Standard MOST25 does not contain advanced DSP controls beyond what the vehicle provides, such as bass, treble, fade, and balance. For a complete DSP solution, with advanced DSP algorithms, the DA-G2.Pro MOST25 can be used. Where only basic TOSLINK outputs are required, the DA1 Digital Pre-Amp MOST25 can be used.
Blackfin DSP
The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). The DA-G2.Standard MOST25 allows for channel summing, channel mapping and mono channel volume controls only. It does not contain any advanced DSP processing beyond what the vehicle controls provide such as bass, treble, balance, and fade etc.
Burr-Brown
The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.
Seamless Integration
The DA-G2.Standard MOST25 interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.
mObridge DSP User Interface
The DA-G2.Standard MOST25 utilises the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.
