Description
Toyota 28-pin + 10-pin connector harness for easy plug & play installation in a wide range of Toyotas.

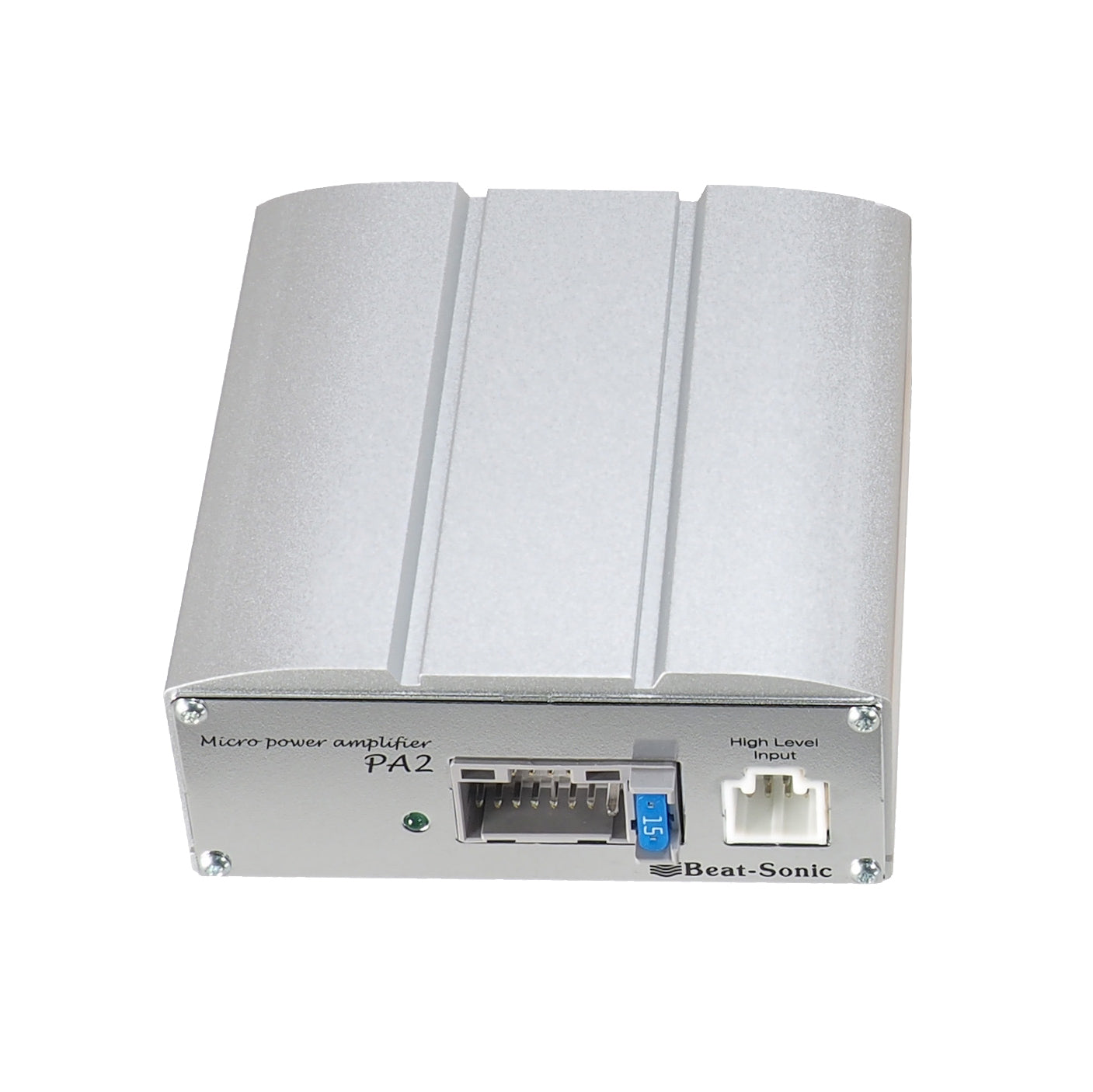

Beat-Sonic PA2T3K plug and play micro power amplifier kit for select 2018+ Toyota models.

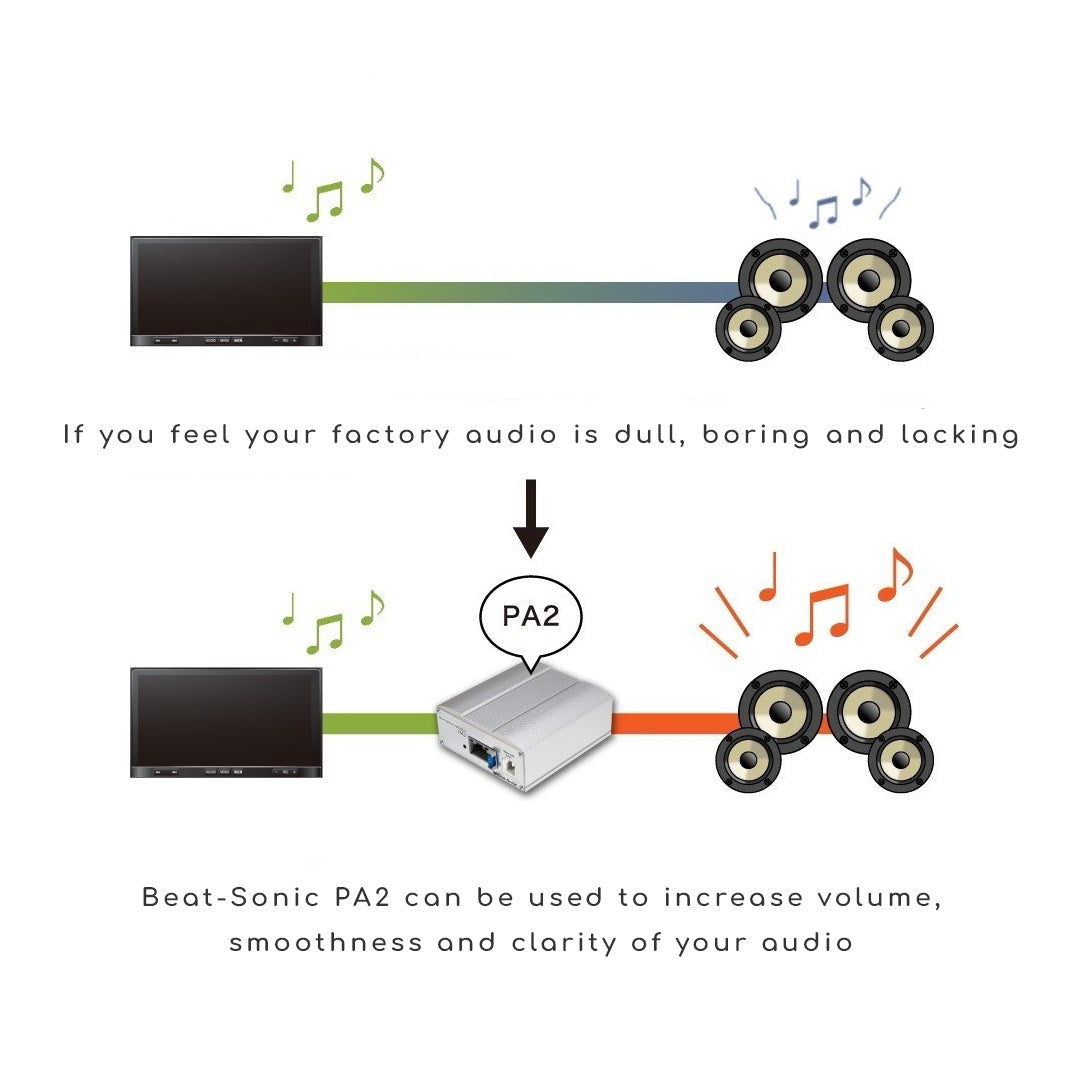

Beat-Sonic PA2T3K Power Amplifier Kit is the plug and play solution to significantly improve and enhance your factory stereo system. The kit is easy to install with no special tools required and no modifications to the factory harness.
Features:
- Encore Alpha Series
- Ultra-compact amplifier seamlessly installs to the factory stereo system

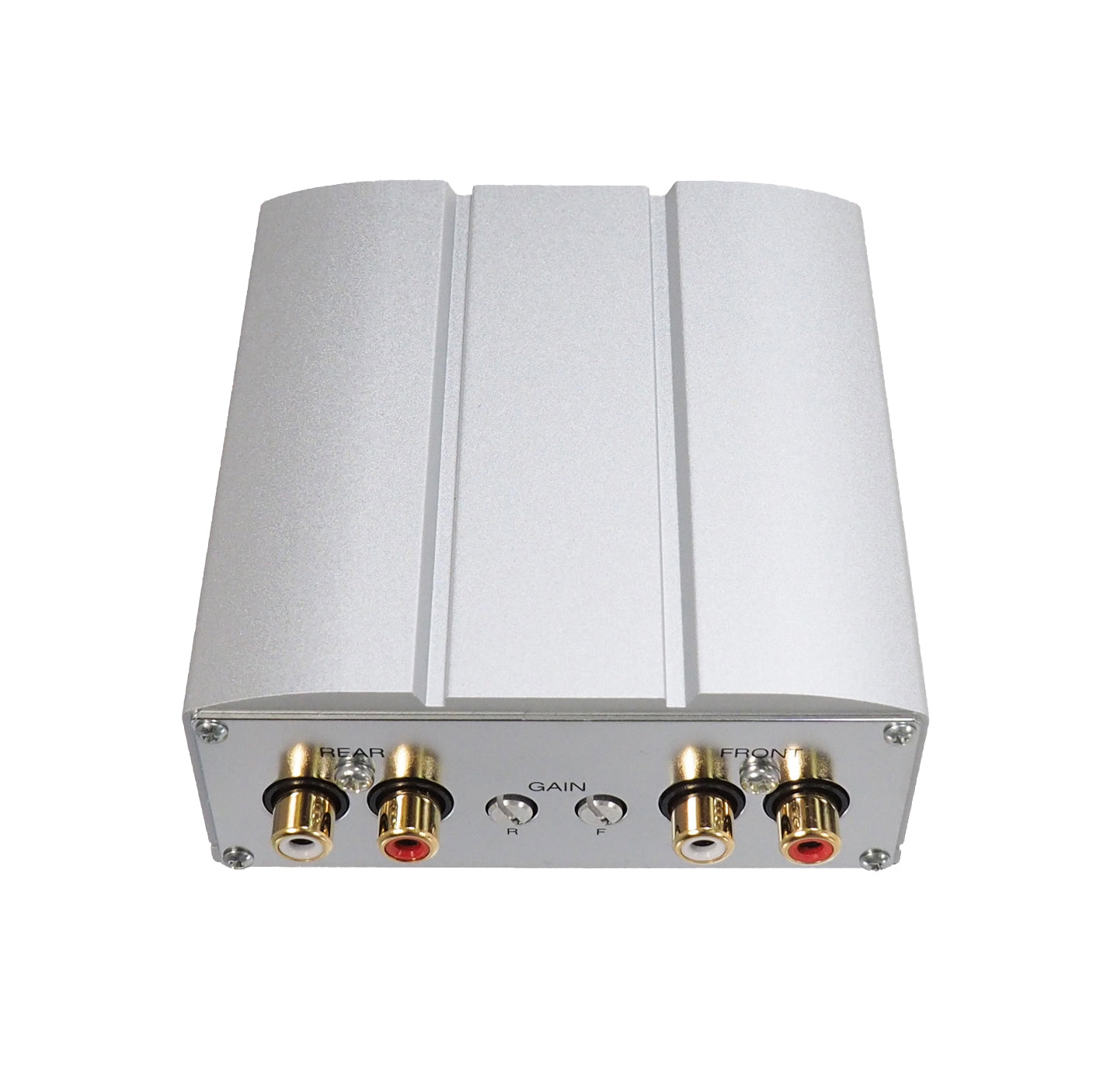

- Additional RCA high level input for for even a higher quality sound
- Significantly improve sound quality with a more clarity and powerful sound output between low, mid and high ranges.
- Experience high resolution sound while keeping factory speakers and head unit.
- Uses carefully selected acoustic components including high quality electrolytic and low impedance capacitors, extra copper thickness of 70μ to improve all frequencies from low to high.
- Compact size allows for flexibility with installation location.
- High-quality FET operational amplifier is used for input sections. Details of the music including artist's voice and breath tone will be expressed at a high resolution level.
- 2023 Toyota RAV4
Beat-Sonic PA2 Overview - Download here
Specifications
| Maximum output | 45W x 4ch (4Ω) |
| Compatible impedance | 4-8Ω |
| Input sensitivity | 0.5-5V |
| Frequency characteristics | 15-80kHz (+0, -1dB) |
| Total harmonic distortion | 0.01% (1kHz / 4Ω) |
| Power supply | DC12V (minus ground) |
| Power supply voltage | DC11V ~ 15V |
| Current consumption | 0.2A (when there is no signal) |
| Fuse used | 15A |
| Audio input | AUX level (RCA) |
| Speaker level | Supports high level input |
| Dimensions | 96 (W) x 40 (D) x 113.5 (H) |
| Weight | 420g (main unit only) |
