Description

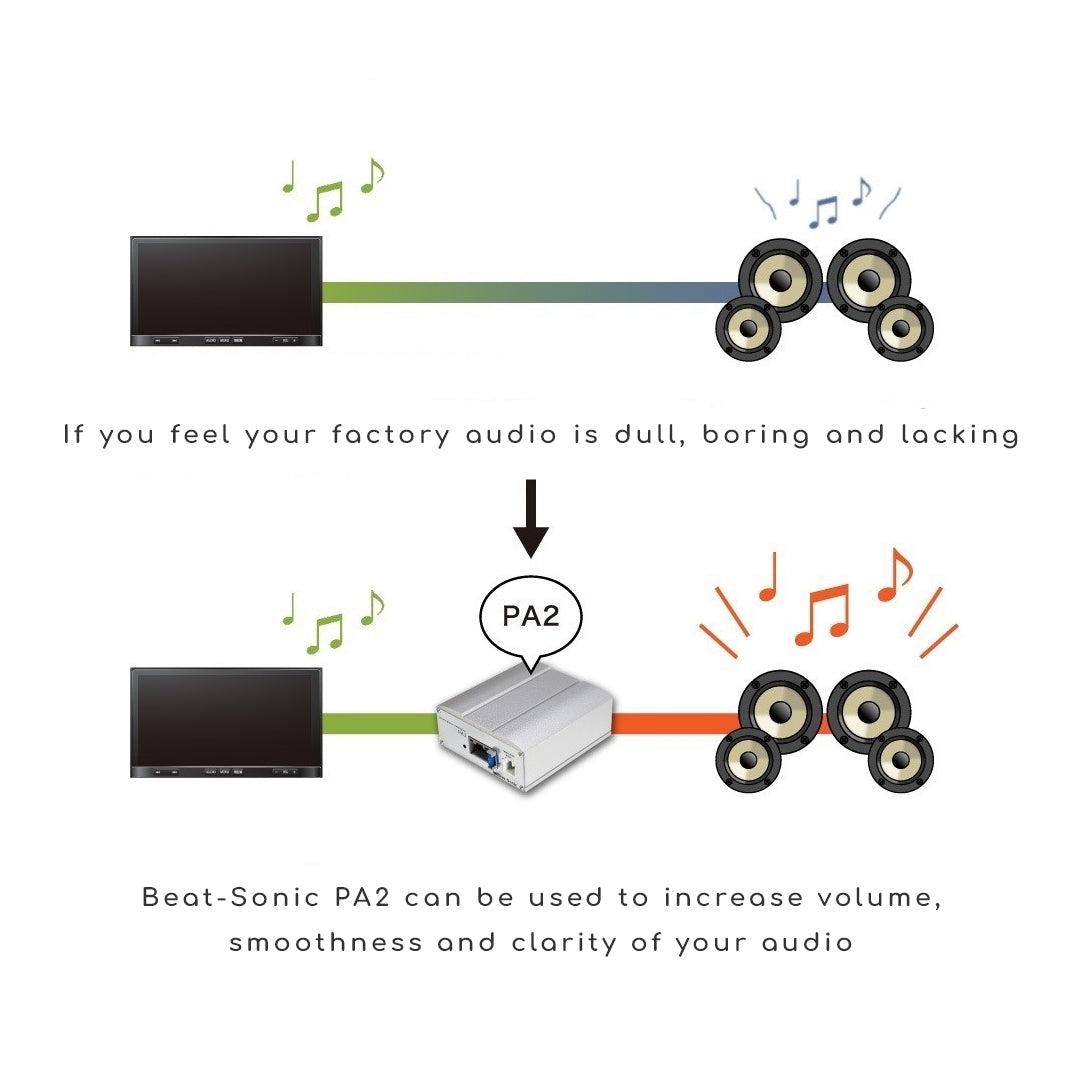

Ultra-compact size, does not take up much space for installation and provides both line-level and high-level inputs. Ideal for a wide range of applications and especially well suited for use with OEM navigation/audio systems that do not offer RCA outputs.

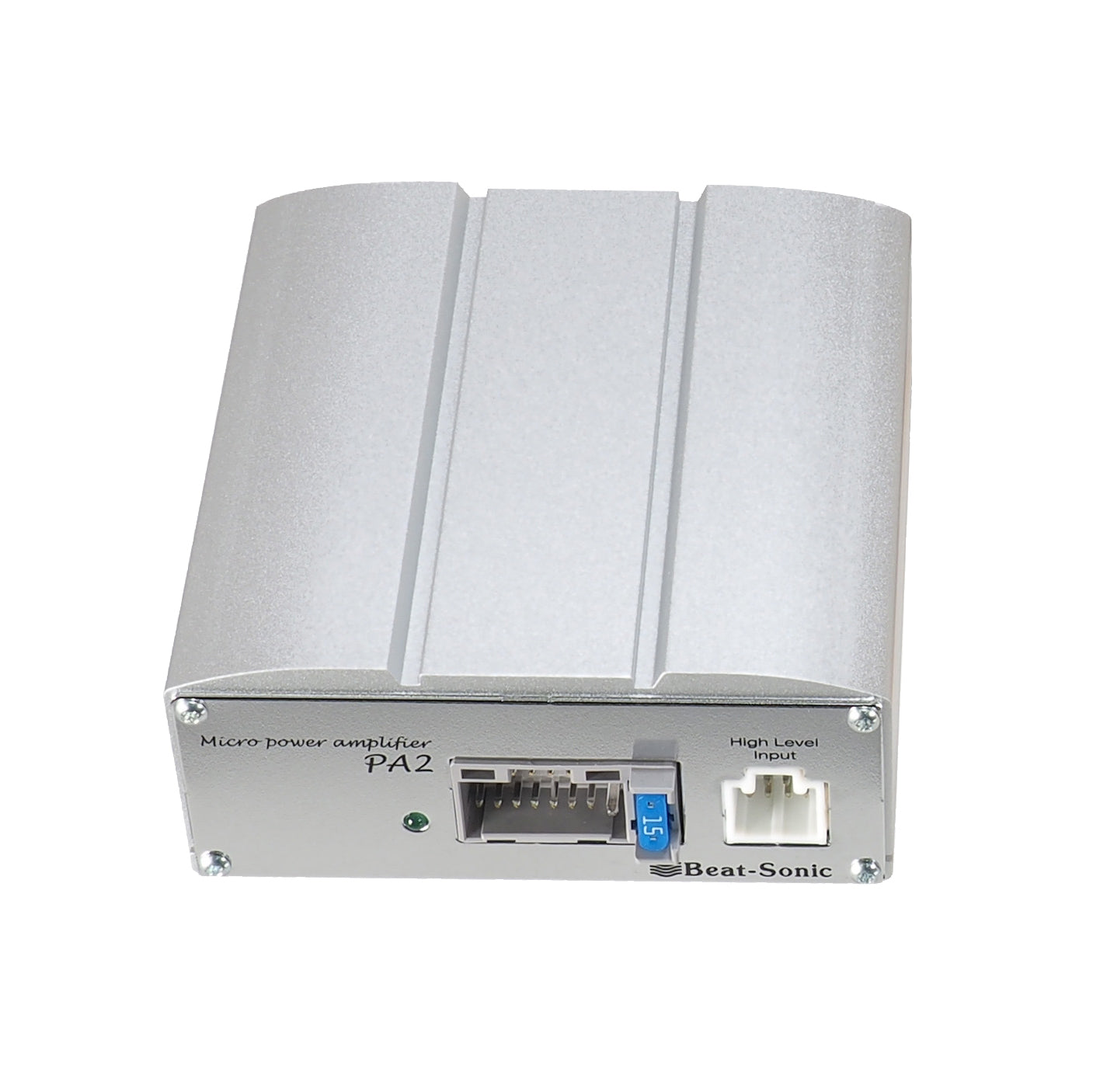

Beat-Sonic encore plug and play power amplifier brings your car entertainment system alive with powerful bass, detailed midrange and exceptional sound quality that will leave you immersed in crystal-clear and accurate sound reproduction.
Beat-Sonic PA2 Overview - Download here
Specification
| Maximum output | 45W x 4ch (4Ω) |
| Compatible impedance | 4-8Ω |
| Input sensitivity | 0.5-5V |
| Frequency characteristics | 15-80kHz (+0, -1dB) |
| Total harmonic distortion | 0.01% (1kHz / 4Ω) |
| Power supply | DC12V (minus ground) |
| Power supply voltage | DC11V ~ 15V |
| Current consumption | 0.2A (when there is no signal) |
| Fuse used | 15A |
| Audio input | AUX level (RCA) |
| Speaker level | Supports high level input |
| Dimensions | 96 (W) x 40 (D) x 113.5 (H) |
| Weight | 420g (main unit only) |
